⚠️ This page is not yet done, just a quick kludge ⚠️

Just wanted to provide you with some goodies there before I do have time to finish at least base stuff on this page.
Some text here are vestigial remnants of yamaha playcard article.

Throughout description of internal data format for ROM Packs is in US patent 4624171 (or US4624171) called "Auto-Playing Apparatus" - here's full PDF
Very detailed song data format description can as well be found on this great webpage.

Also, if you have Casio PT-50 with TA-1 tape adapter installed, there's a couple hundred songs for it - as if you also had a thrid of a hundred rompacks! Only downside is that it takes over a minute to load one.

Most important stuff here currently is in downloads.

In case you are tinkering around with the song sequencer data format to create a MIDI converter, player, editor or something - this is likely to be of a definite value.

Casio RomPacks - including built-in demo ones

Dumped and extracted for you also SK-2, SK-5, SK-10 internal rompacks songs, so that can now be normally loaded into other synths. All of these are also availale as tape loading wavs for PT-50.

Casio ROM Pack Extractor & Compiler

Made also a compiler that makes fully valid any rompack images with any of the songs, and, given the same songs in the same order, compiles into bit-exact replicas of stock rompacks.

Songs (currently you can have over 260 pieces!) extracted and can be used as separate entities. Currently there is no player or MIDI converter for those, but someone will eventually make one - and that's why I put this song archive here. It's not as trivial as it seems because all rhythm and accompaniment sequences will have to also be recreated.

Casio RomPacks
Casio SK-5 built-in RomPack
  • Dumped also SK-5 built-in rompack MSM5268-56 (all included in extracted songs)
  • And also SK-2 and SK-10 built-in rompack demos (all are also included)
  • Currently I still do miss EM-20 rompack demo rom MSM5268-57

By the way, I also dumped for you some Casio cartridges like these ones.
And hundreds of other dumps I did that are all around the web - like on this fantastic webpage.

Currently under construction. I am going to fill it up, whenever I will find some spare time for doing it.

Extracted Song Binaries ~ Sequencer Data

Yes, I did it and there's a lot now for you.

Song binaries contain corrected addresses/pointers so they are all properly adjusted for treating each song data binary as a separate piece. Compiler then adjusts all those when placing them in a rompack.

Song binaries start with track type marker, then address, then next marker and so on; and end with Track-R end event ($f0 00).
Throughout description of all of this turned out to be in US patent 4624171 (or US4624171) named "Auto-Playing Apparatus" - here's a full PDF for you.
Very detailed song data format description can be found on this great webpage.
Patent contains some mistakes and illustration bit typos here and there, but, when combined with Ra226's description and common sense, it is all round great.

Conversion to MIDI is not trivial, since you need to recreate all rhythms and accompaniment sequences as well. Also, there are many oddities and quirks that need to be accounted for, for example that chord changes are offset slightly before the spot where they need to change, except when sounding held chords (constant chord sound instead of accompaniment patterns) which willthen sound to early etc. Count-ins that may or may not be 3 ticks shorter than a measure also depending on that. And the proper section repeat event handling. And potentially oddball behaviour of phrase counter. So there is a lot to dig to get it all play, convert or edit properly.

Song binaries do not contain rompack header or footer, so relevant reading starts from "Table: RO-551 Track Index Analysis" which is what my song binaries start with. Addresses in these ones point to proper track data counting nibbles relatively to song binary start.

By the way, all are checked to be correct, all have been compiled into tape loading wavs for PT-50 and many have been listened, and many have been recompiled into new rompacks. So these song binaries can be trusted to be good.

Few songs from different rompacks after extraction do perfectly match, and there are few that have some alterations done by casio (mostly instrument changes when they adapted rompack songs for SK keyboards).

Also, while SK-2 and SK-10 officially have 4 demo songs, you'll find that actually there are 21. All of the inaccessible (5 and above) are the same for both keyboards and contain little jingles, fanfares and snippets for the "sampling repeat" mode. And, of course, all do play and work fine on other keyboards.

In the SK-5 I found a hardware rompack on a separate board and dumped it as well - it is completely valid rompack, but contains some dummy empty songs in between the normal ones. Dummies are interesting themselves as an official canonical proper empty song data from original song data vendor and their tools. Otherwise I did recompile it into a rompack without those dummies, and also made one compilation of all songs from SK-2, SK-5 and SK-10 in one rompack.

Anyways, this is a treasure trove archive to develop your player, editor, converter on.

Converted Song Binaries for Tape Loading into PT-50 (but not PT-30)

Also reverse engineered stuff related to PT-50 (and other such like PT-30) tape loading and made tools to demodulate→extract→alter→compile→modulate. This now allows to create PT-50 tape loadable goodies from any rompacks.

You need PT-50 with TA-1 tape interface installed.

I have made and put here for you archive with ready WAV files you can load into PT-50 with all of the extracted ROMPack songs (hundreds! 😎).

Unfortunately PT-30 has twice smaller sequencer memory than PT-50 so it even theoretically cannot fit any of the over-1kbyte RomPack songs (about 58% of all known songs are over 1kbyte). However, unfortunately sequencer data format in it is totally different (even differnt byte length of note events, etc) and probably is why it is missing RomPack slot. I was looking into possibility to make all smaller rompack songs available also for PT-30 as well, however this is not possible without fully reprocessing all track event code.

As I don't have Casio KX-101 nor any recordings of its tape saves, I can't currently say if it is possible to make a perfectly transferred rompack song library for it just like I did for PT-50. It seems to be possible, but I'll need to have some tape dumps to see what is there. Or maybe, if you have one (and even less likely - with working tape mechanism), you could just try loading any of my PT-50 tape loads to see if that works (unlikely).
Bad thinig is that despite much later firmware, it still has old set of non-rompack rhythms from PT-30, so its sequencer may also likely be from it - and thus completely incompatible. I suspect that if very lucky, some conversions could eventually be made, but chances are slim.

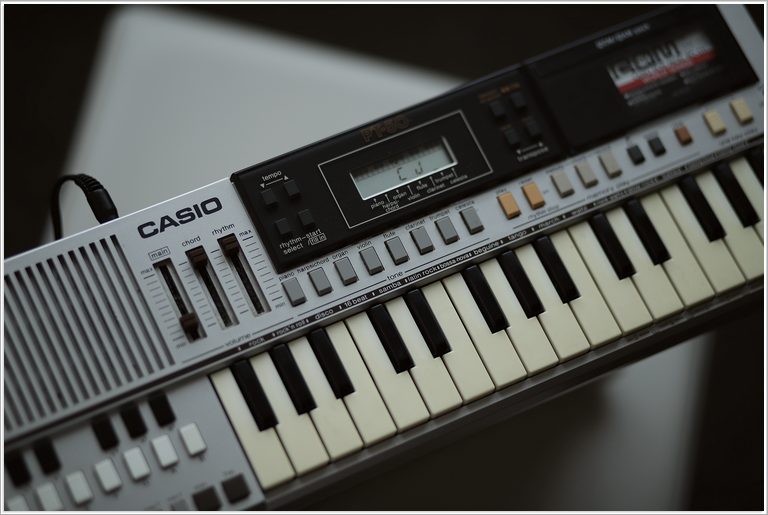

Casio PT-50
more Casio RomPacks
Casio PT-50


Tools for RomPacks

Since I figured out the
